Concurrency

Basicsโ€‹

Process is a unit of execution, that has its own memory space - heap. The heap isn't shared between two applications or two processes, they each have their own. Each process can have multiple threads. Every application has at least one thread, and that's the main thread.

  • Creating a thread doesn't require as many resources as creating a process does
  • Every thread created by a process, shares that process's memory space, the heap
  • Each thread's got what's called a thread stack. This is memory, that only a single thread, will have access to

Every Java application runs as a single process, and each process can then have multiple threads within it. Every process has a heap, and every thread has a thread stack.

Threads accessing memoryโ€‹

Each thread has its own stack for local variables and method calls. One thread doesn't have access to another thread's stack. Every concurrent thread additionally has access to the process memory, or the heap. This is where objects and their data reside. This shared memory space allows all threads, to read and modify the same objects. When one thread changes an object on the heap, these changes are visible to other threads.

Time Slicingโ€‹

It's a technique used in multitasking operating systems, to allow multiple threads or processes to share a single CPU for execution. Available CPU time is sliced into small-time intervals, which are divvied out to the threads. Each thread gets that interval, to attempt to make some progress, on the tasks it has to do. Whether it completes its task or not, in that time slice, doesn't matter to the thread management system. When the time is up, it has to yield to another thread, and wait until its turn again.

Interferenceโ€‹

A thread can be halfway through its work, when it's time slice expires, and it then has to pause or suspend execution, to allow other threads to wake up and execute. This means another active thread has an open door, to that same unit of work, where the paused thread is only partially done.

Interleavingโ€‹

  • When multiple threads run concurrently, their instructions can overlap or interleave in time
  • The execution of multiple threads happens in an arbitrary order
  • The order in which the threads execute can't be guaranteed

Atomic actionsโ€‹

An atomic action is one, that effectively happens all at once. It either happens completely, or it doesn't happen at all. Side effects of an atomic action are never visible until the action completes.

Even some assignment operators like for longs and doubles are not atomic. Some other examples are

i++ - increment operand

--i - decrement operand

Thread-Safeโ€‹

An object or a block of code is thread safe, if the correctness and consistency of the program's output or its visible state, is unaffected by other threads. Atomic operations and immutable objects are examples of thread-safe code.

JMMโ€‹

The Java Memory Model, is a specification that defines some rules and behaviors for threads, to help control and manage shared access to data, and operations.

  • Atomicity of Operations. Few operations are truly atomic.
  • Synchronization is the process of controlling threads' access to shared resources.

Java's Threadsโ€‹

java.util.Threadโ€‹

Priorityโ€‹

Thread priority is a value from 1 to 10. The Thread class has three pre-defined priorities

  • Thread.MIN_PRIORITY = 1 - low
  • Thread.MIN_PRIORITY = 5 - default
  • Thread.MIN_PRIORITY = 10 - high

Higher-priority threads have a better chance of being scheduled, by a thread scheduler, over the lower-priority threads. We can think of the priority as more of a suggestion, to the thread management process.

Ways to create a threadโ€‹

  • Extend the Thread class, and create an instance of this new subclass
  • Create a new instance of Thread, and pass it any instance that implements the Runnable interface
  • Use an Executor, to create one or more threads

Extending the Thread classโ€‹

Then we can do something like

new CustomThread().start();

Advantages of extending a thread are

  • We have more control over the thread's behavior and properties
  • We can access the thread's methods and fields directly from our subclass
  • We can create a new thread for each task

Disadvantages

  • We can only extend one class in Java, so our subclass can't extend any other classes
  • Our class is tightly coupled to the Thread class, which may make it difficult to maintain

Implementing Runnableโ€‹

Then we can do something like

new Thread(CustomRunnable).start();

Advantages of implementing a Runnable

  • We can extend any class and still implement Runnable
  • Our class (if we create a class) is loosely coupled to the Thread class, which makes it easier to maintain
  • We can use anonymous classes, lambda expressions, or method references, to very quickly describe thread behavior

Disadvantages

  • We do have less control over the thread's behavior and properties

run() and start()โ€‹

There's a big difference between calling run() and start().

important

If we execute the run() method, it's executed synchronously, by the running thread it's invoked from. If we want our code to be run asynchronously, we must call the native start() method.

Statesโ€‹

StatusMeaning
NEWA thread that has not yet started is in this state
RUNNABLEA thread executing in the Java virtual machine is in this state
BLOCKEDA thread that is blocked waiting for a monitor lock is in this state
WAITINGA thread that is waiting indefinitely for another thread to perform a particular action is in this state
TIMED_WAITINGA thread that is waiting for another thread to perform an action for up to a specified waiting time is in this state
TERMINATEDA thread that has exited is in this state

volatileโ€‹

The operating system may read from heap variables, and make a copy of the value, in each thread's own storage cache. Each thread has its own small and fast memory storage, that holds its own copy of a shared resource's value. One thread can modify a shared variable, but this change might not be immediately reflected or visible. Instead, it's first updated in the thread's local cache. The operating system may not flush the first thread's changes to the heap, until the thread has finished executing.

The volatile keyword is used as a modifier for class variables. It's an indicator that this variable's value may be changed by multiple threads. This modifier ensures that the variable is always read from, and written to the main memory, rather than from any thread-specific caches. This provides memory consistency for this variable's value across threads.

When to useโ€‹

  • When a variable is used to track the state of a shared resource, such as a counter or a flag
  • When a variable is used to communicate between threads

When not to useโ€‹

  • When a variable is only used by a single thread
  • When a variable is used to store a large amount of data

synchronizedโ€‹

Different invocations of synchronized methods, on the same object, are guaranteed not to interleave. When one thread is executing a synchronized method for an object, all other threads that invoke synchronized methods for the same object, block, and suspend their execution, until the first thread is done with the object. When a synchronized method exits, it ensures that the state of the object is visible to all threads.

public synchronized void instanceMethod() {
// Locks on 'this'
}

public static synchronized void staticMethod() {
// Locks on Class object (MyClass.class)
}

Critical Sectionโ€‹

The critical section is the code that's referencing a shared resource like a variable. Only one thread at a time should be able to execute a critical section. When all critical sections are synchronized, the class is thread-safe.

Object instance monitorโ€‹

Every object instance in Java has a space for a built-in intrinsic lock, also known as a monitor lock. A thread acquires a lock by executing a synchronized method on the instance, or by using the instance as the parameter to a synchronized statement. A thread releases a lock when it exits from a synchronized block or method, even if it throws an exception. Only one thread at a time can acquire this lock, which prevents all other threads from accessing the instance's state, until the lock is released. All other threads, which want access to the instance's state through synchronized code, will block, and wait, until they can acquire a lock.

Statementโ€‹

The synchronized statement is usually a better option in most circumstances, since it limits the scope of synchronization, to the critical section of code. It gives us much more granular control, over when we want other threads to block.

public void doSomething() {
synchronized(this) {
// Critical section โ€” only one thread at a time per instance
}

synchronized(SomeClass.class) {
// Critical section โ€” one thread across all instances
}

synchronized(someOtherObject) {
// We can lock on any object we choose
}
}

Using synchronized statement on specific object or a class property lets other threads work faster with the instance, the statement is located in. This is because we are not locking the whole object which might be a singleton service, but only the data that must stay synced or.

Reentrant Synchronizationโ€‹

When method calls are executed from the same thread, any nested calls which try to acquire the lock, won't block, because the current thread already has it. Without this, threads could block indefinitely.

wait(), notify(), notifyAll()โ€‹

Are used to manage some monitor lock situations, to prevent threads from blocking indefinitely. Because these methods are on Object, any instance of any class, can execute these methods, from within a synchronized method or statement.

There are a few pieces of docs that are important here

  1. A spurious wakeup might happen, so a thread might wake up without being notified, interrupted, or timing out, so wait() must be used in a loop of some kind like
synchronized (obj) {
while (<condition does not hold>)
obj.wait(timeout);
... // Perform action appropriate to condition
}
  1. There are three ways of a thread becoming the owner of the object's monitor
  • By executing a synchronized instance method of that object
  • By executing the body of a synchronized statement that synchronizes on the object
  • For objects of type Class, by executing a synchronized static method of that class

Locksโ€‹

The purpose of a lock is to control access to a shared resource by multiple threads. The monitor lock is pretty easy to use, but it does have limitations.

  • There's no way to test if the intrinsic lock has already been acquired
  • There's no way to interrupt a blocked thread
  • There's not an easy way to debug, or examine the intrinsic lock
  • The intrinsic lock is an exclusive lock

java.util.concurrent.locksโ€‹

The Lock Interface, and some of the provided implementations, can give us a bit more control, and flexibility over locking, and when and how to block threads.

The hold count of a lock counts the number of times that a single thread, the owner of the lock, has acquired the lock.

  1. When a thread acquires a lock for the first time, the lock's hold count is set to one
  2. If a lock is re-entrant, and a thread, reacquires the same lock, the lock's hold count will get incremented
  3. When a thread releases a lock, the lock's hold count is decremented
  4. A lock is only released when it's hold count becomes zero

Because of this, it's really important to include a call to the unlock method in a finally clause, of any code that will acquire a lock, even if it's re-entrant.

Advantages of using Lock implementations

  • Explicit control over when to acquire and release locks, making it easier to avoid deadlocks, and manage other concurrency challenges
  • Timeouts allow us to attempt to acquire a lock without blocking indefinitely
  • Along with timeouts, Interruptible Locking lets us handle interruptions during acquisition more gracefully
  • Improved Debugging methods let us query the number of waiting threads, and check if a thread holds a lock

ReentrantLockโ€‹

  • Explicit locking (lock() and unlock())
  • Reentrancy: same thread can lock multiple times
  • tryLock(): non-blocking attempt to acquire a lock
  • lockInterruptibly(): allows interruption
  • Fairness is possible: queue threads in order of arrival
new ReentrantLock(true);

ReentrantReadWriteLockโ€‹

ReentrantReadWriteLocks can be used to improve concurrency in some uses of some kinds of Collections. This is typically worthwhile only when the collections are expected to be large, accessed by more reader threads than writer threads, and entail operations with overhead that outweighs synchronization overhead.

  • Multiple readers at the same time
  • Only one writer, and no readers during writing
ReadWriteLock rwLock = new ReentrantReadWriteLock();
Lock readLock = rwLock.readLock();
Lock writeLock = rwLock.writeLock();

ExecutorServiceโ€‹

ExecutorService classes exist to manage the creation and execution of threads. Managing threads manually can be complex and error-prone. It can lead to complex issues like resource contention, thread creation overhead, and scalability challenges. For these reasons, we'll want to use an ExecutorService, even when working with a single thread.

Java provides several implementations of ExecutorService type which provide the following benefits:

  • Simplify thread management, by abstracting execution, to the level of tasks which need to be run
  • Use Thread Pools, reducing the cost of creating new threads (which can be expensive)
  • Efficient Scaling, by utilizing multiple processor cores
  • Built-in synchronization, reducing concurrency-related errors
  • Graceful Shutdown, preventing resource leaks
  • Scheduled implementations exist to further help with management workflows

ExecutorService implementations let us stay focused on tasks that need to be run, rather than thread creation and management. A thread pool mitigates the cost of thread creation and destruction, by keeping a set of threads around, in a pool, for current and future work. Threads, once they complete one task, can then be reassigned to another task, without the expense of destroying that thread and creating a new one.

The mechanics of a thread poolโ€‹

A thread pool consists of three components:

  1. Worker Threads are available in a pool to execute tasks. They're pre-created and kept alive, throughout the lifetime of the application.
  2. Submitted Tasks are placed in a First-In First-Out queue. Threads pop tasks from the queue, and execute them, so they're executed in the order they're submitted.
  3. The Thread Pool Manager allocates tasks to threads, and ensures proper thread synchronization.

Thread Pool classesโ€‹

ClassDescriptionExecutors Method
FixedThreadPoolHas a fixed number of threadsnewFixedThreadPool
CachedThreadPoolCreates new threads as needed, a variable size poolnewCachedThreadPool
ScheduledThreadPoolCan schedule tasks to run at a specific time or repeatedly at regular intervalsnewScheduledThreadPool
WorkStealingPoolUses a work-stealing algorithm to distribute tasks among the threads in the poolnewWorkStealingPool
ForkJoinPoolSpecialized WorkStealingPool for executing ForkJoinTasksn/a

WorkStealingPoolโ€‹

The work stealing thread pool is used for parallelism, and concurrent execution of tasks. Each worker thread has its own task queue. When a worker thread finishes its own tasks, and its queue is empty, it can "steal" tasks from the back of other worker threads' queues.

The ForkJoinPool class is Java's implementation of the Work Stealing Pool. The newWorkStealingPool actually creates an instance of ForkJoinPool under the hood.

Runnable and Callableโ€‹

Significantly, compared to Runnable, Callable returns a value

Runnable's Functional MethodCallable's Functional Method
void run()V call() throws Exception

execute() vs submit()โ€‹

MethodSignature
execute()void execute(Runnable command)
submit()Future<?> submit(Runnable task)
<T> Future<T> submit(Runnable task, T result)
<T> Future<T> submit(Callable<T> task)

The Future<V> interfaceโ€‹

A Future represents a result, of an asynchronous computation. It's a generic type, a placeholder for a result instance. It has methods that cancel the task, retrieve the result, or check if the computation was completed or cancelled. The get() method returns the result, but we can only call this get() method, when the computation is complete, otherwise the call will block, until it does complete. The overloaded version of the get() method allows us to specify a wait time, rather than blocking.

CompletableFuture<T>โ€‹

CompletableFutures allow

  • Non-blocking callbacks
  • Chaining of multiple tasks

invokeAll() vs invokeAny()โ€‹

CharacteristicinvokeAny()invokeAll()
Tasks ExecutedAt least one, the first to completeAll tasks get executed
ResultResult of the first task to complete, not a FutureReturns a list of results, as futures, for all of the tasks, once they have all completed
Use casesWe shall use this method when we need a quick response back from one of several tasks, and we don't care if some will failWe shall use this method when we want all the tasks to be executed concurrently, and all tasks must complete before proceeding

Parallel Streamsโ€‹

Via an intermediate .parallel() we can make a stream execute in a concurrent parallel mode.

The key advantages of parallel streams are

  • Improved performance on multi-core CPUs
  • Simplified code for concurrent processing
  • Automatic workload distribution among available threads

Parallel streams are not the best choice when the data is not large enough to justify the overhead of parallel processing.

  • Parallel streams introduce some overhead, such as the need to create and manage multiple threads. This overhead can be significant for small arrays
  • Parallel streams need to synchronize their operations to ensure that the results are correct. This synchronization can also add overhead, especially for small arrays

Synchronized and concurrent collectionsโ€‹

Both concurrent and synchronized collections are thread-safe, and can be used in parallel streams, or in a multithreaded application. Concurrent collections are recommended over synchronized collections in most scenarios.

  • Synchronized collections are implemented using locks which protect the collection from concurrent access. This means a single lock is used to synchronize access to the entire map
  • Concurrent collections are more efficient than synchronized collections, because they use techniques like fine-grained locking, or non-blocking algorithms to enable safe concurrent access without the need for heavy-handed locking, meaning synchronized or single access locks

Concurrent Collectionsโ€‹

Lists and Arraysโ€‹

LinkedList and ArrayList, as well as TreeSet and HashSet, are NOT thread-safe. Each of these can be used with a synchronized wrapper, which we can get from the Collections helper class. The synchronized wrappers provide a thread-safe option for us, with less impact on the design, if we need to make existing code work concurrently. When starting from scratch with new code though, its recommend to use concurrent collections.

For lists, there are two concurrent collection choices, depending on the type of work which needs to be done in parallel.

  • We shall use ConcurrentLinkedQueue when we'll have frequent insertions and removals, such as producer-consumer scenarios, or task scheduling
  • Use CopyOnWriteArrayList when we have a read-heavy workload with infrequent modifications. This type of list is useful for scenarios like configuration management, or read-only views of data

For array, we can use ArrayBlockingQueue. This is a fixed-size queue, that blocks under two circumstances. The first is if we try to poll or remove an element from an empty queue. The second is if we try to offer, or add an element to a full queue. This is designed as a First In First Out or FIFO queue.

Mapsโ€‹

ClassSortedBlockingThread-safe
HashMapโŒโŒโŒ
TreeMapโœ…โŒโŒ
ConcurrentHashMapโŒโŒโœ…
ConcurrentSkipListMapโœ…โŒโœ…
SynchronizedMapโœ…โœ…โœ…

CopyOnWriteArrayListโ€‹

Whenever this list is modified, by adding, updating, or removing elements, a new copy of the underlying array is created. The modification is performed on the new copy, allowing concurrent read operations to use the original unmodified array. This ensures that reader threads aren't blocked by writers. Since changes are made to a separate copy of the array, there aren't any synchronization issues between the reading and writing threads. This is ordinarily too costly, but may be more efficient than alternatives when traversal operations, vastly outnumber mutations.

WatchService Interfaceโ€‹

This is a special type of service, which watches registered objects for changes and events. For example, a file manager may use a watch service, to monitor a directory for changes, so that it can update its display of the list of files, when files are created or deleted.

java.util.concurrency.atomicโ€‹

Single ElementArray of Elements
AtomicBooleann/a
AtomicIntegerAtomicIntegerArray
AtomicLongAtomicLongArray
AtomicReferenceAtomicReferenceArray

A small toolkit of classes that support lock-free, thread-safe programming on single variables. These classes can significantly improve the performance of concurrent applications, especially in high-throughput systems.

Atomics use the CAS (Compare and Swap) algorithm on CPU level to ensure that updates to a variable are atomic. This means a similar to a spinlock action.

if (current_value == expected_value) {
current_value = new_value;
return true;
} else {
return false;
}

Common problems in multithreaded applicationsโ€‹

ProblemDescription
DeadlockTwo or more threads are blocked, waiting for each other to release a resource.
LivelockTwo or more threads are continuously looping, each waiting for the other thread to take some action.
Race ConditionThreads clash over shared data resulting in wrong data.
StarvationA thread is not able to obtain the resources it needs to execute.

Deadlockโ€‹

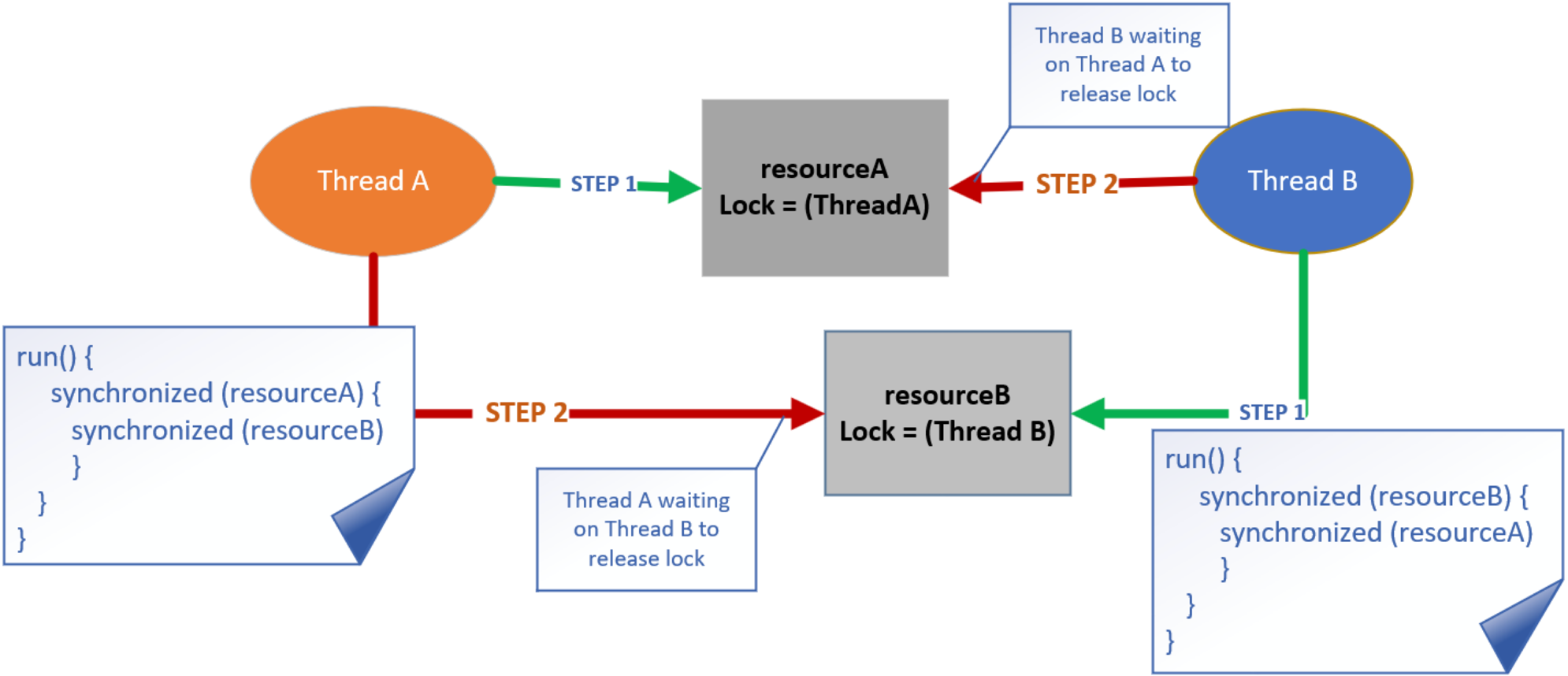

Deadlock example from JMC Tim Buchalka&#39;s course Another deadlock example from JMC Tim Buchalka&#39;s course

Prevention measures

  • Organizing our locks into a hierarchy, and ensuring that all threads acquire locks in the same order to avoid circular waiting, which is a common cause of deadlocks. This approach helps establish a global lock order that all threads must follow
  • Instead of using traditional synchronized blocks or methods, we can use the tryLock method on the Lock interface. This method allows us to attempt to acquire a lock. If it fails, we can handle the situation without causing a deadlock

Livelockโ€‹

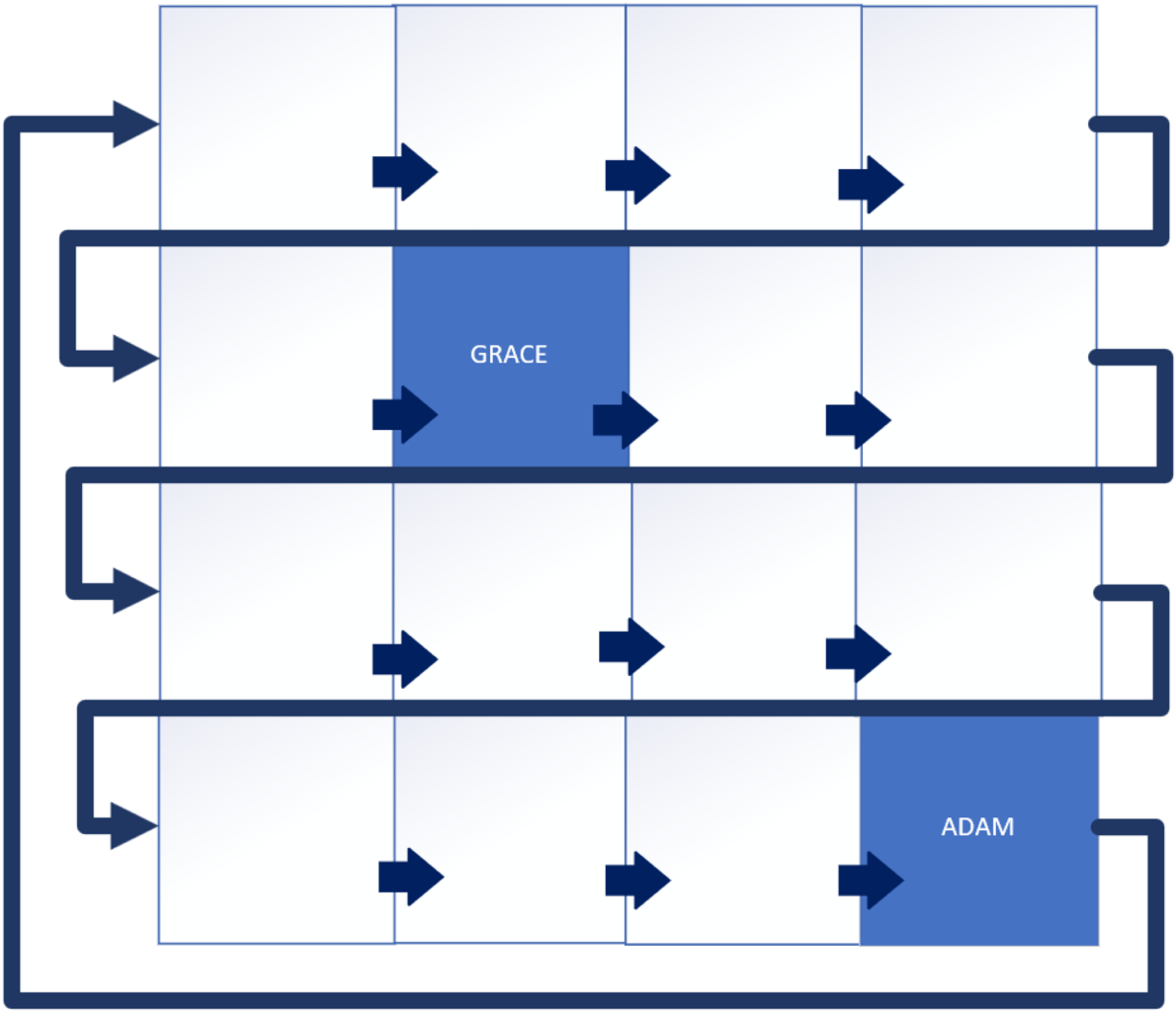

Livelock example from JMC Tim Buchalka&#39;s course

Prevention measures

  • Avoiding having threads that are constantly checking each other's states
  • Using timeouts to prevent threads from waiting indefinitely for each other
  • Using randomization to break the symmetry between threads.

Race conditionโ€‹

Prevention measures

  • Synchronization
  • Atomics
  • Thread-safe collections
  • Immutable objects

Starvationโ€‹

Prevention measures

  • Fair Locks. A fair lock guarantees that all threads waiting to acquire the lock will be given an equal chance of acquiring it. When a thread requests access to a fair lock, it gets added to a FIFO queue. The lock is then granted to the thread at the head of the queue, or the first in. Monitor lock is unfair. ReentrantLock can be fair or unfair.

Benefits of fair locks

  • Fair locks can help to prevent thread starvation
  • They may improve the overall performance of a system, by ensuring that all threads get a chance of accessing resources
  • They can make a system more predictable and easier to debug

Drawbacks of fair locks

  • Fair locks might have a negative impact on performance, especially in systems where threads are frequently competing for locks
  • Fair locks can be more difficult to implement

An interesting aricle on mutlithreading in Spring
